| तांगशी के औद्योगिक क्षेत्र, गाओबू शहर, डोंगगुआन शहर ग्वांगडोंग प्रांत, चीन | bella@zehuimach.com |
 |
| Place of Origin: | Guangdong, China (Mainland) |
| ब्रांड नाम: | ZHMACH |
| प्रमाणन: | CE Certificate |
| Model Number: | ZHQG-2400A/B |
| Minimum Order Quantity: | one set |
|---|---|
| मूल्य: | inquiry |
| Packaging Details: | Foam Block Cutting Machine to be packed in wooden case. |
| Delivery Time: | 30 days after receive payment |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | two sets per month |
| Dimension(L*W*H): | L2.8*W1.5*H2.5m | After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|---|---|
| Engineers available to service machinery overseas: | 0-8m/min | Control: | automatic PLC control |
| cutting protected: | blade box cover protected | Voltage: | 380V |
| Cutting blade: | knife blade / saw tooth blade | Cutting setting: | separated control box |
| Cutting way: | from left to right | Machine install: | together with the automatic continuously foaming machine line |
| हाई लाइट: | foam cutting cnc machine,electric foam cutter |
||
EPE Foam / Polyurethane Sponge Block Cutting Machine With Vacuum Working Table
Polyurethane Sponge Block Cutting Machine with Foam density 13kg/m3 to 60kg/m3
Cutting fence can be moved from right to left according to the pre-selected space, it will stop automatically for pending the cutting unit to move forward or backward to cut any desired thickness.
ZHQG-2400A Foam Cutting Machine (knife belt type)
This machine installed on the foam conveyor line,it is used for continuous foam cut to some length, in order to reansport,storage and processing.This machine adopts digital control,the knife belt is thin and sharp and moving left and right to cut horizontally moved foam,the machine is simple to operate and cut precisely.

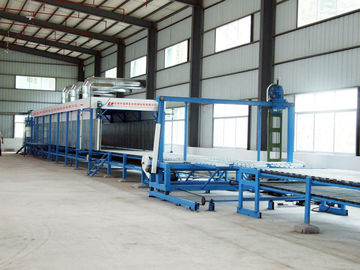

Foam Block Cutting Machine is together with the horizontal continuously foaming machine line to cut the long foam block into the specify length that for other prcess like sheet cutting
ZHQG-2400A
|
Cutting foam height
|
2400mm |
|
Cutting foam width
|
1300mm |
|
Blade frame moving speed
|
21m/min |
|
Conveyer belt speed
|
0~8m/mm |
|
Power
|
4.8kw |
ZHQG-2400B Foam Cutting Machine (saw-toothed)
ZHQG-2400B
|
Cutting foam height
|
2400mm |
|
Cutting foam width
|
1300mm |
|
Blade frame moving speed
|
21m/min |
|
Conveyer belt speed
|
0~8m/mm |
|
Power
|
6.7kw |
|
Specifications
|
|
|
Max Foam width for cutting:
|
2400mm |
|
Max Foam height for cutting:
|
1400mm |
|
Min Foam height for cutting:
|
500mm |
|
The Foam density range:
|
13kg/m3 to 60kg/m3 |
|
International Standards :
|
ISO 40%: 120N-400N |
|
ASTM Standards:
|
ASTM 65%: 300N-1150N |
|
Cutting Thickness:
|
3-400mm |
|
Cutting Speed:
|
0~12m/min |
|
Position of blade
|
-2° to 5° |
|
Cutter blade type:
|
Teeth Blade |
| Blade box guide | Width:70mm, Thickness: 7mm, Length: over 2600mm |
|
Blade specification
|
Width: 30mm, Thickness: 0.45mm |
|
Inclined system
|
Manual & Automatic |
|
Total Power:
|
5.29kw |
|
Voltage:
|
380V, 50HZ, 3 Phase |
|
Machine size:
|
1500mm*4550mm*3000mm |
|
Machine weight:
|
1500kgs |
|
Height from conveyor surface to floor:
|
800mm |
| By default, how many pcs of cutting knife is on the machine already? | one |
| By default, how many pcs of grinding wheel is on the machine already? | two |
| By default, how many pcs of Rotary encoder is on the machine already? | one |
|
What is the operation method?
|
PLC control |
|
Key parts and brand
|
QHMACH |
|
PLC
|
1PC,SIMENS |
|
Touch screen
|
1PC,SIMENS |
|
A/C Contactor
|
1PC,Panasonic |
|
Motor
|
4PC, Wanxin(Taiwan brand) |
| Motor with Gear Reducer | 2PC, Wanxin(Taiwan brand) |
|
Main Electric Parts
|
Schneider |
|
Button & Switch
|
Schneider |
|
Spare parts
|
|
| Cutting blade knife (5pcs), Cutting teeth blade ( 5pcs ), Grinding Wheel (10pcs), Rotary encoder (1pc). | |
| Price Details | |
|
Total Price(FOB USD)
|
6800-8800 per set |
| (EXW RMB to Port) | |
| Tax rebate for RMB | |
| Price until: | |
|
Port
|
shenzhen |
|
Lead time:
|
30days after payment |
| Payment term: | T/T 30% advance before production.the balance of total amount 70% will be paid before shippment (The bank charge for buyer's account). |
| Guarantee: | one year |
| Packing method | disassembled and is wrapped by PE film firstly, then wrapped again by wooden cases. |
| Total Volume Packed | |
| Installation | |
|
Intallation is needed?
|
together with production line |
|
For how many days including Training?
|
about 30 days |
|
How many engineer?
|
1-3 engineer |
|
Engineer speaks English?
|
NO |
|
Visa + Trip cost
|
paid by customer |
| Fty Info | |
| Established In | 2008 |
| Website Address | http://www.foammachine.en.alibaba.com |
